Chemtrol PC5000 Programmable Controller
Details

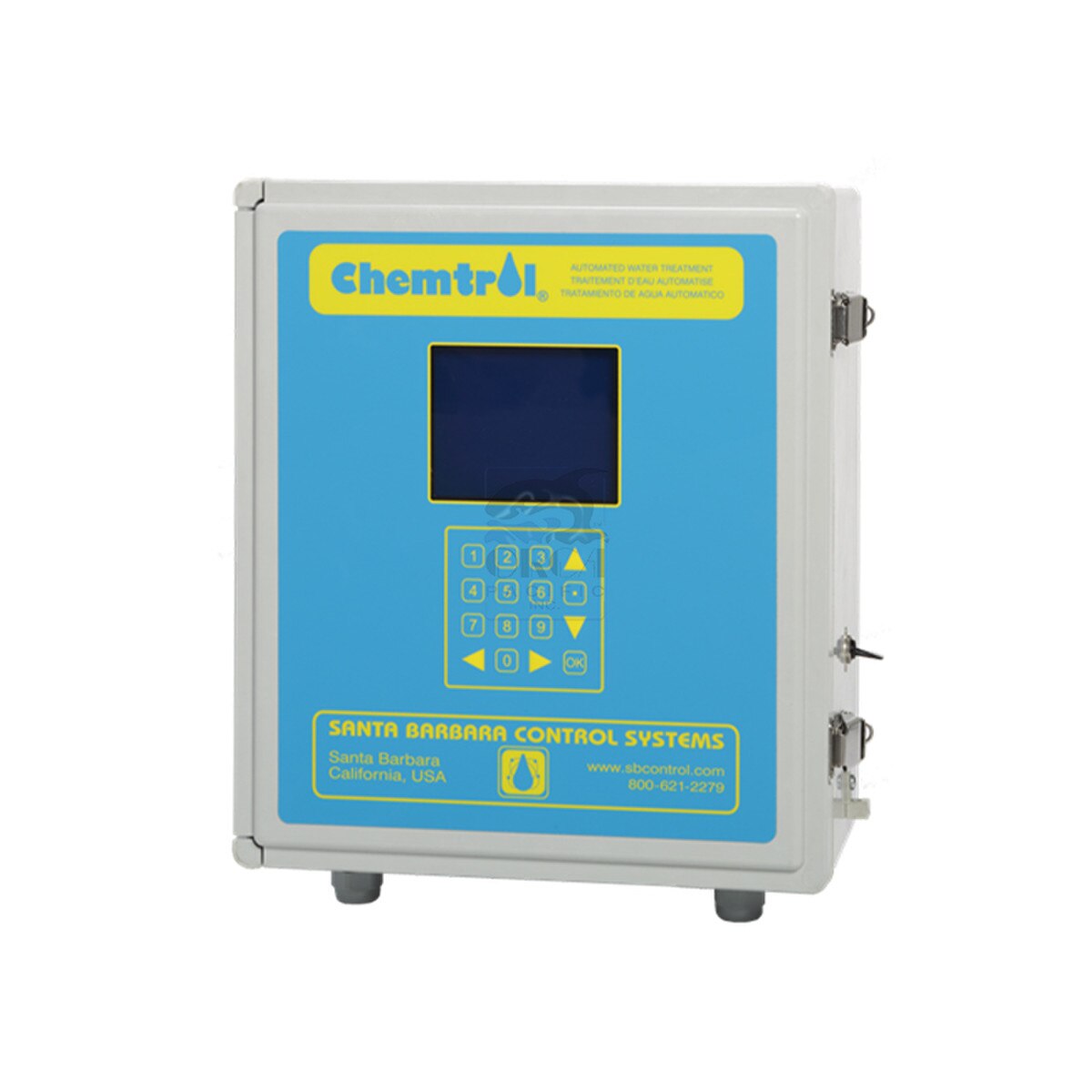

CHEMTROL® PC5000 Programmable Controller
The CHEMTROL® PC5000 is a fully programmable water treatment controller designed to automate and monitor multiple water chemistry and system functions from a single platform. The controller provides comprehensive management of ORP, free chlorine (PPM), pH, conductivity/TDS, temperature, heater operation, and water balance calculations, making it ideal for commercial pools, spas, and water treatment applications.
Featuring a solid-state free chlorine sensor, advanced data logging capabilities, programmable control functions, and user-friendly menu navigation, the PC5000 allows operators to monitor system performance and make adjustments directly from the controller interface.
Features
- Complete chemical automation for ORP, PPM, and pH control
- Solid-state free chlorine (PPM) sensor with selective membrane technology
- Conductivity and TDS monitoring capabilities
- Temperature monitoring with programmable heater control
- Flow cell assembly with safety flow switch
- Programmable acid wash control for sensor cleaning
- Remote alarm capability
- Feed control modes including Manual, ON/OFF, Proportional Feed, and Timer
- One-, two-, or three-point sensor calibration
- Langelier Index monitoring for scaling and corrosion alerts
- Superchlorination and dechlorination programming
- Chemical and energy saver programs
- Dynamic probe testing with sensor failure warnings
- On-board memory for up to 1,000 test records
- Real-time data printing and download capability
- Multi-level password protection with up to ten user codes
- 24-hour clock and calendar
- Battery backup retains settings during power interruptions
Specifications
- Brand: Chemtrol®
- Part Number: PC5000
- Product Type: Programmable Water Treatment Controller
- Control Parameters: ORP, Free Chlorine (PPM), pH, Conductivity/TDS, Temperature
- Feed Control Modes: Manual, ON/OFF, Proportional Feed, Timer
- Calibration Options: 1, 2, or 3 Point
- Data Storage Capacity: Up to 1,000 Records
- Security: Multi-Level Password Protection
- Water Balance Monitoring: Langelier Index
- Heater Control: Programmable
- Warranty: 5-Year Electronics Warranty
